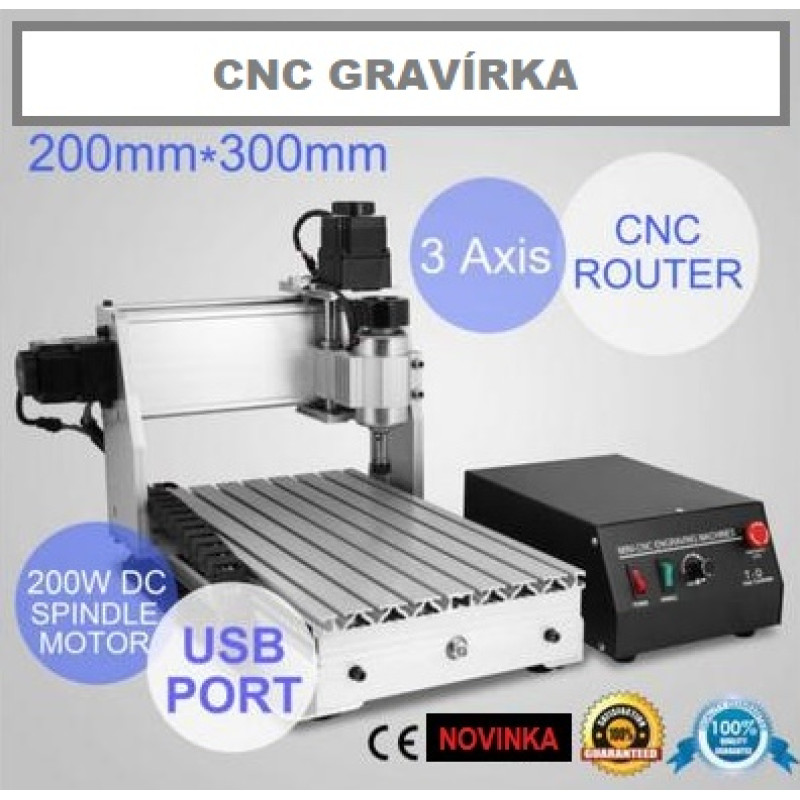

CNC engraver 3020T/T4

• Simple operation and installation
• More steady and strong equiped with aluminum alloy frame materials
• Can be controlled only by desktop computer,not suitable for laptop
• Mach 3 software is simple and intelligent
• Can control the engraving more precise
• Emergency stop button enhance security
• Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.
• Can engraving much more materials by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone
• Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.
• Cover plates reducing pollution for the screws and shafts.
• The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
• The chrome shafts is not easy to deform,suitable for long time use.
• Flexible coupling can be used for high torque transmission.
• High Precision Stepping motor makes engraving more precise .
• 2 years Free warranty

3020T triaxial engraving machine part parameters:

1. Effective working travel: 200(X)mm*300(Y)mm*50(Z)mm
2. Shape dimension: 550x400*350mm
3. Max.workpiece dimension: 200mm*300mm＜65mm
4. Work table dimension: 200mm*300mm*15mm
5. Carving deepth: 55mm

6. Frame materials: aluminum alloy 6063 and 6061
7. Driving units X axis: 1204 trapezoidal screws
8. Driving units Y axis: 1204 trapezoidal screws
9. Driving units Z axis: 1204 trapezoidal screws
10. Sliding units X axis: Dia.13mm chrome plate shafts
11. Sliding units Yaxis: Dia.16mm chrome plate shafts
12. Sliding units Z axis: Dia.12mm chrome plate shafts
13. Stepping motor type: 57 two-phase 1.45A-2A
14. Spindle motor: 200w dc motor，NEW
15. Principal axis collet: ER11/3.175 mm
16. Spindle speed: 300 ~ 8000rpm/min (PWM stepless speed regulation)
17. Repeat accuracy: 0.05mm
18. Empty line speed: 0-2500mm/min (16 subdivided driving down)
19. Spindle precision: radial beat acuities 0.03 mm
20. Control unit: triaxial one-piece drive + ring variable power + PWM speed
21. Carving Instructions: G code/TAB files/nc file/NCC files
22. Communication interface: through parallel connection with computer
23. Software environment: Windows 2000 / xp
24. Carving speed: 0-2000mm/min (different materials differ)
25. Machine weight: 24KG

Control box parameters:

1. Operating Voltage:AC110V or AC220V  50/60Hz(we also stock USA.UK.EU.AU.plugs and 110V-240V power version for the country all over the world.)
2. Control unit:2.5A stepping motor driver plus adjustable spindle speed controller
3. Computer connection:on board palrallel port
4. Command code:G code
5. Acceptable software:Mach3,EMC2
6. Protection:Emergency stop button

1× Engraving machine
1× Control box
1× Parallel cable
1× Power cable(we also stock 110V-220V power version and USA.UK.EU.AU.plugs for the country all over the world.)
1× Tool box and tools
3× Axis motors
